  040 Series    040 SERIES UNSEALED

SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal COPPER ALLOY Operating Temperature Range -40°C ~ +105°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 0.85mm2 (22AWG~18AWG) Maximum Electric Current 15A

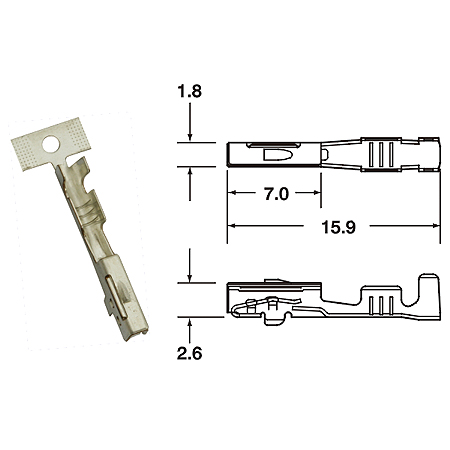

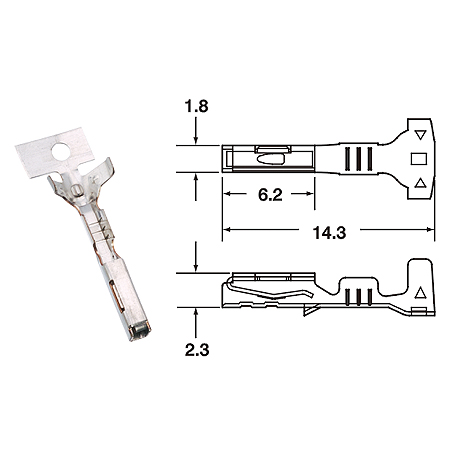

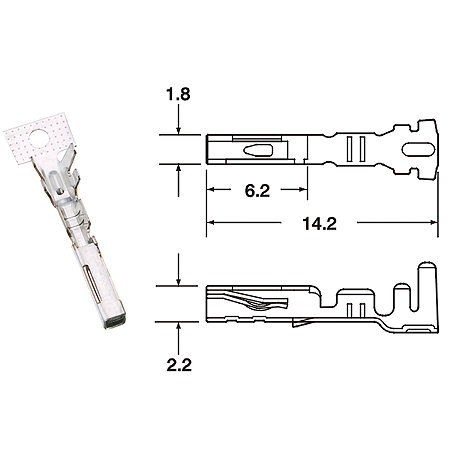

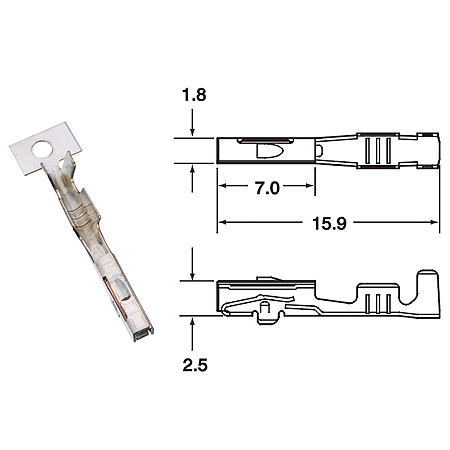

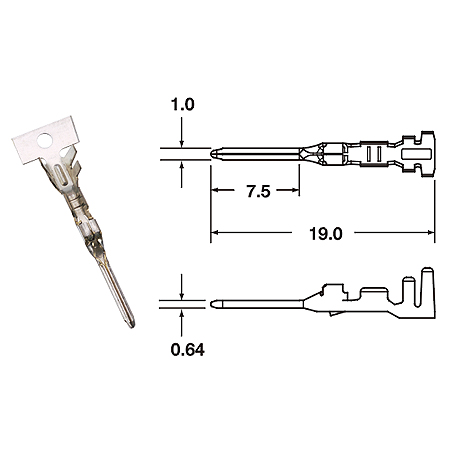

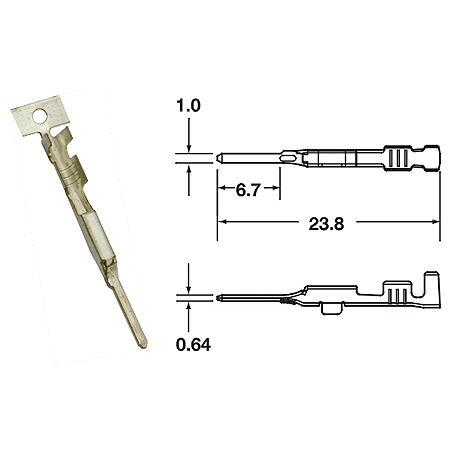

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1101A0640 22-20 0.3-0.5 Brass Pre-Tin 5000 CDM-97003-S CDT-97003-S ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0640 22-18 0.3-0.85 Copper Alloy Pre-Tin 5000 CDM-97024-S CDT-97024-S ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0040 22-18 0.3-0.85 Copper Alloy Pre-Tin 5000 CDM-94125-S CDT-94125-S ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0045 22-20 0.3-0.5 Copper Alloy Pre-Tin 5000 CDM-94108-S CDT-94108-S ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1101A0100 22-20 0.3-0.5 Brass Pre-Tin 5000 CDM-95001-S CDT-95001-S ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0100 22-20 0.3-0.5 Copper Alloy Pre-Tin 5000 CDM-95022-S CDT-95022-S
