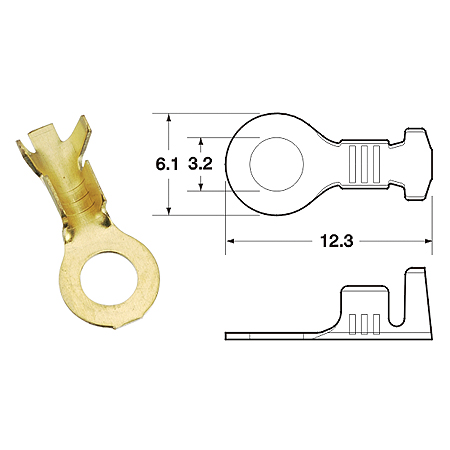

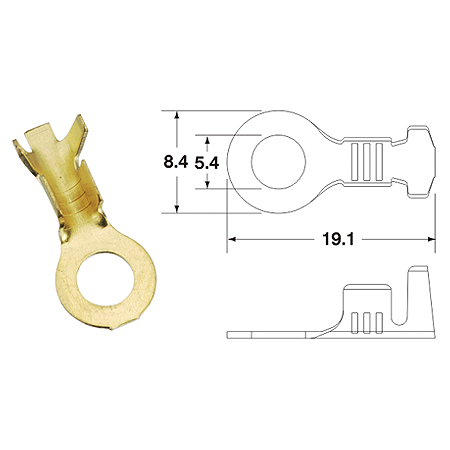

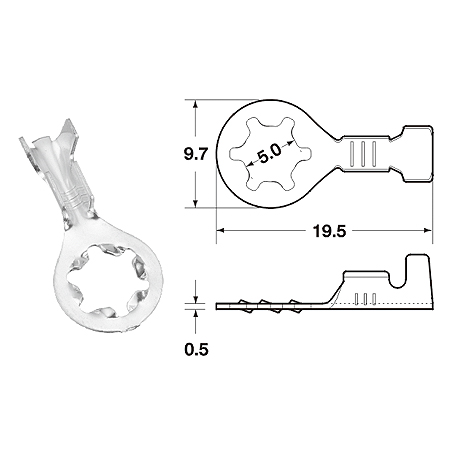

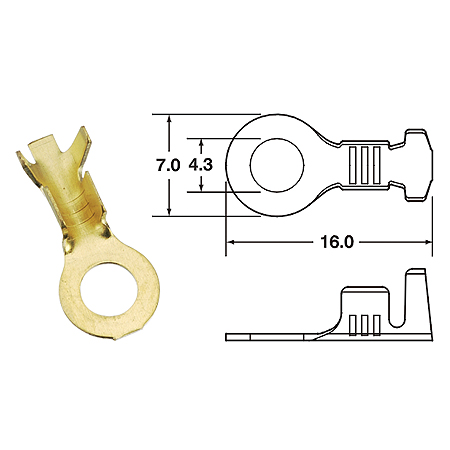

  Other    RING TONGUE TERMINALS

SPECIFICATIONS Material Connector - Female Terninal BRASS OR FE Operating Temperature Range -40°C ~ +120°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~6.0mm2 (22AWG~10AWG) Maximum Electric Current 40A

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 RM030-01B2 22-16 0.3-1.4 Brass Tin 10000 CDM-96012-M CDT-96012-M RM030-01B9 22-16 0.3-1.4 Brass None 8000 CDM-96012-M CDT-96012-M RM030-01BT 22-16 0.3-1.4 Brass Pre-Tin 10000 CDM-96012-M CDT-96012-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 RM040-01B2 22-16 0.3-1.4 Brass Tin 10000 CDM-96017-M CDT-96017-M RM040-01B9 22-16 0.3-1.4 Brass None 7000 CDM-96017-M CDT-96017-M RM040-01BT 22-16 0.3-1.4 Brass Pre-Tin 7000 CDM-96017-M CDT-96017-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 RM050-01B2 22-16 0.3-1.4 Brass Tin 7000 CDM-96017-M CDT-96017-M RM050-01B9 22-16 0.3-1.4 Brass None 7000 CDM-96017-M CDT-96017-M RM050-01BT 22-16 0.3-1.4 Brass Pre-Tin 5000 CDM-96017-M CDT-96017-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 RL050-03B2 18-14 0.85-2.0 Brass Tin 7000 CDM-96017-L CDT-96017-L RL050-03B9 18-14 0.85-2.0 Brass None 7000 CDM-96017-L CDT-96017-L RL050-03BT 18-14 0.85-2.0 Brass Pre-Tin 7000 CDM-96017-L CDT-96017-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 RM050-02B2 20-16 0.5-1.4 Brass Tin 5000 CDM-98018-M CDT-98018-M RM050-02B9 20-16 0.5-1.4 Brass None 5000 CDM-98018-M CDT-98018-M RM050-02BT 20-16 0.5-1.4 Brass Pre-Tin 5000 CDM-98018-M CDT-98018-M
