  110 Series    110 SERIES TERMINALS

SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal BRASS OR COPPER ALLOY Operating Temperature Range -40°C ~ +125°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 2.0mm2 (22AWG~14AWG) Maximum Electric Current 25A

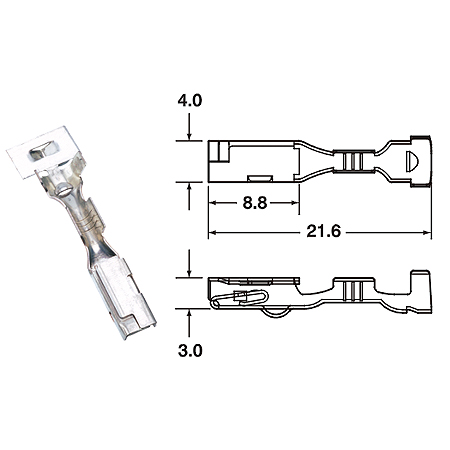

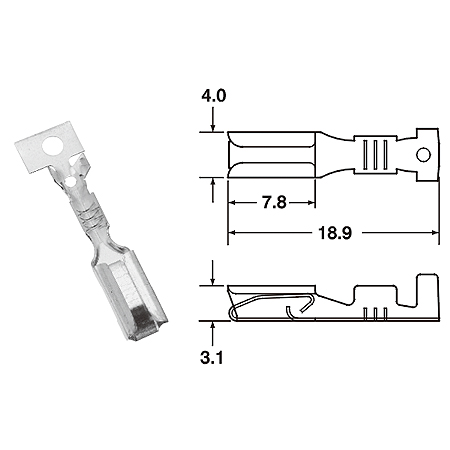

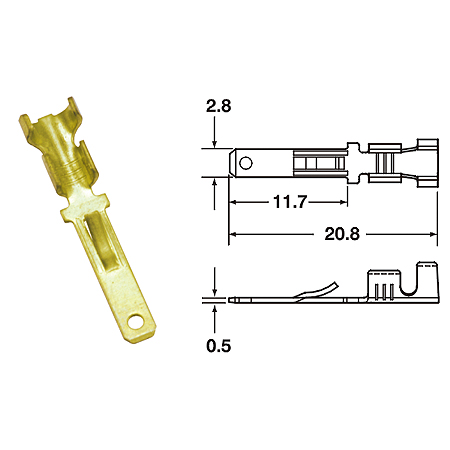

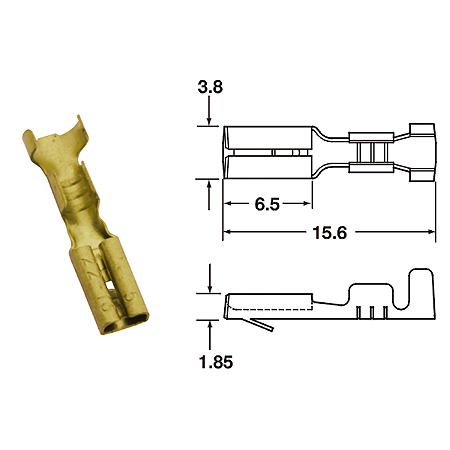

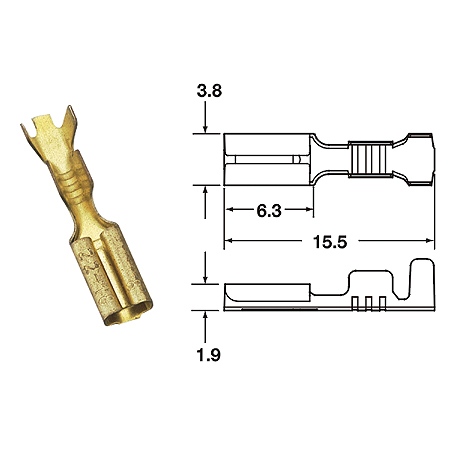

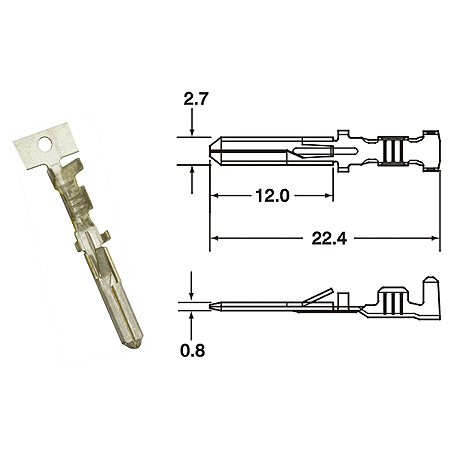

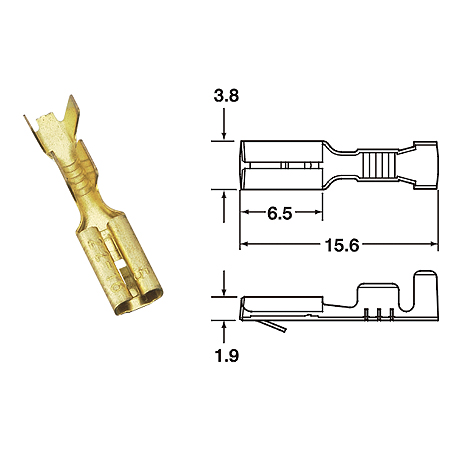

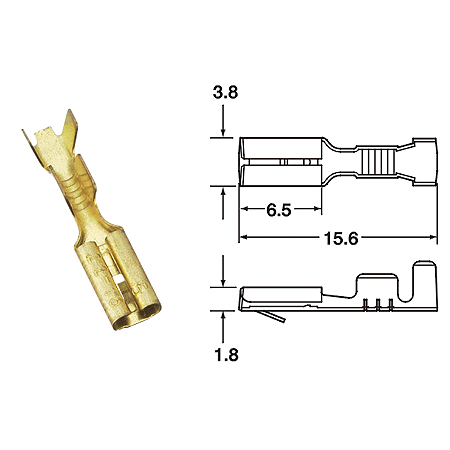

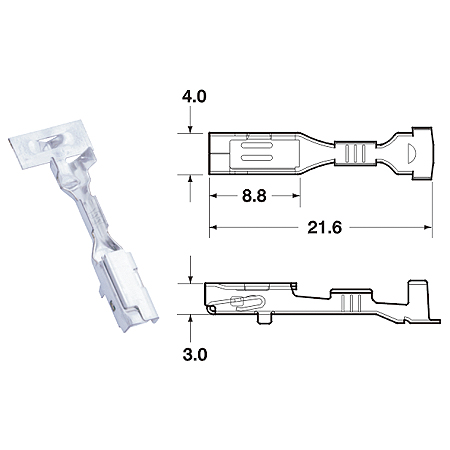

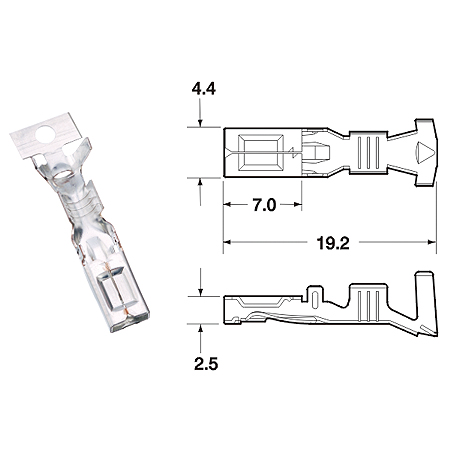

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 ◎MM110-02B9 20-16 0.5-1.4 Brass None 10000 CDM-98003-M CDT-98003-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FM110-01B28 22-18 0.3-0.8 Brass Tin 10000 CDM-93014-M CDT-93014-M FM110-01B98 22-18 0.3-0.8 Brass None 10000 CDM-93014-M CDT-93014-M FM110-01BT8 22-18 0.3-0.8 Brass Pre-Tin 10000 CDM-93014-M CDT-93014-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 ◎FM110-02B65 22-18 0.3-0.8 Brass Nickel-gold 10000 CDM-98004-M CDT-98004-M FM110-02B25 22-18 0.3-0.8 Brass Tin 10000 CDM-98004-M CDT-98004-M FM110-02B95 22-18 0.3-0.8 Brass None 10000 CDM-98004-M CDT-98004-M FM110-02BT5 22-18 0.3-0.8 Brass Pre-Tin 10000 CDM-98004-M CDT-98004-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FM110-03B25 22-16 0.3-1.4 Brass Tin 10000 CDM-93037-M CDT-93037-M FM110-03B95 22-16 0.3-1.4 Brass None 10000 CDM-93037-M CDT-93037-M FM110-03BT5 22-16 0.3-1.4 Brass Pre-Tin 10000 CDM-93037-M CDT-93037-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FM110-04B28 22-16 0.3-1.4 Brass Tin 10000 CDM-98002-M CDT-98002-M FM110-04B98 22-16 0.3-1.4 Brass None 10000 CDM-98002-M CDT-98002-M FM110-04BT8 22-16 0.3-1.4 Brass Pre-Tin 10000 CDM-98002-M CDT-98002-M UL/CUL ALL LISTED ◎MM110-02B9,FM110-02B65 : NOT UL AND CUL LISTED TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1201A0265 22-20 0.3-0.5 Brass Pre-Tin 5000 CDM-93110-S CDT-93110-S 1201A0267 14 2.0 Brass Pre-Tin 4000 CDM-96025-L CDT-96025-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FM110-07B95 22-16 0.3-1.25 Brass None 10000 CDM-98005-M CDT-98005-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1101A0336 20-16 0.5-1.0 Brass Pre-Tin 3500 CDM-98007-M CDT-98007-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0066 16 1.25 Copper Alloy Pre-Tin 2500 CDM-94126-M CDT-94126-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0070 22 0.3 Copper Alloy Pre-Tin 3000 CDM-94129-S CDT-94129-S 1211A0071 18 0.85 Copper Alloy Pre-Tin 3000 CDM-94129-M CDT-94129-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1201A0265 22-20 0.3-0.5 Brass Pre-Tin 5000 CDM-98006-S CDT-98006-S 1201A0267 14 2.0 Brass Pre-Tin 4000 CDM-98006-L CDT-98006-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0610 22-20 0.3-0.6 Copper Alloy Pre-Tin 3000 CDM-96027-S CDT-96027-S
